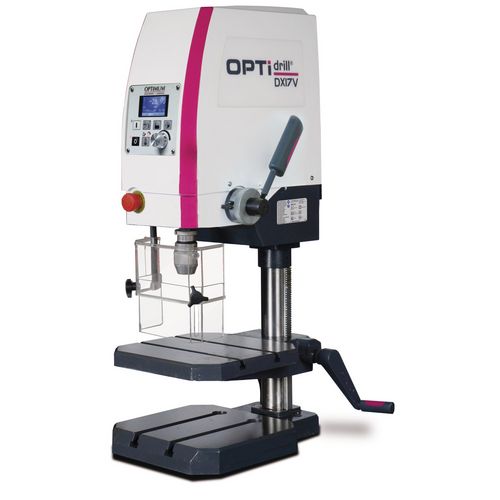

Bench drill OPTIdrill DX 17V

https://bdcopartners-utec.odoo.com/web/image/product.template/11920/image_1920?unique=658835f
(0 review)

Bench drill with infinitely variable speed control. Highlight of the machine - the menu-driven operation of the working modes drilling / tapping.

0.000 EGP 0.0 EGP 0.000 EGP VAT Excluded

0.000 EGP VAT Excluded

Request a quote

  • Brand
  • Weight
  • Length
  • Column diameter
  • Width/depth (product) approx.
  • Height (product) approx.
  • Supply voltage
  • Mains frequency
  • Drive motor output
  • Drilling performance in steel
  • Continuous drilling performance steel
  • Thread tapping steel
  • Spindle chuck
  • Reach
  • Spindle sleeve stroke
  • Min. distance chuck - drilling table
  • Max. distance chuck - drilling table
  • Drilling table workspace L x W
  • Drilling Table T-slot size/distance/amount
  • Min. distance chuck - machine base
  • Max. distance chuck - machine base
  • Machine Base T-slot size/distance/amount
  • Machine base work area L x W
  • Speed range
  • Speed control
  • Standard
  • EMV-Class
  • VPE

This combination does not exist.

Get a quote

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Specifications

Info
Brand OPTIMUM
Dimensions and weights
Weight 0.73 Kg
Length 425 mm
Column diameter 60 mm
Width/depth (product) approx. 481 mm
Height (product) approx. 910 mm
Electrical Data
Supply voltage 230 V
Mains frequency 50 Hz
Drive motor output 1.0 kW
Drilling performance
Drilling performance in steel 16 mm
Continuous drilling performance steel 13 mm
Thread tapping steel M8
Spindle
Spindle chuck MK 2
Reach 235 mm
Spindle sleeve stroke 60 mm
Drilling table
Min. distance chuck - drilling table 98 mm
Max. distance chuck - drilling table 315 mm
Drilling table workspace L x W 290 x 290 mm
Drilling Table T-slot size/distance/amount 10mm / 100mm / 2
Machine base
Min. distance chuck - machine base 0 mm
Max. distance chuck - machine base 385 mm
Machine Base T-slot size/distance/amount 14mm / 100mm / 2
Machine base work area L x W 290 x 280 mm
Speed Range
Speed range 50 – 4000 min¯¹
Speed control Electronically variable
Standars & Certification
Standard DIN EN 55011
EMV-Class C2
VPE 1
