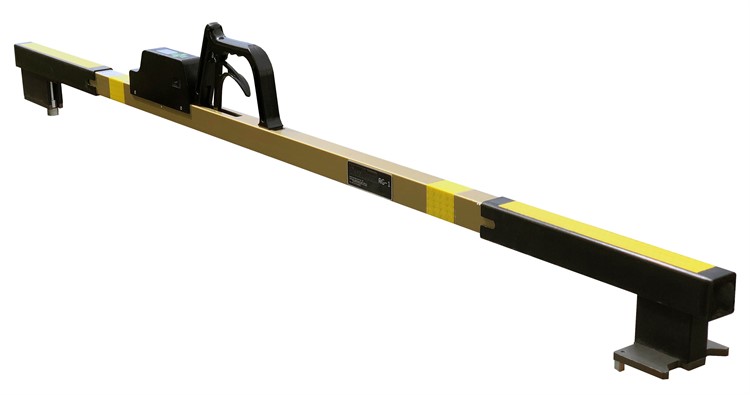

The digital track gauge RG-1 is mainly used to measure the track gauge, superelevation, check rail gauge, back to back distance and flangeway clearance.
Fast measurement
The track gauge is easy to use and measurement is very fast thanks to the unique grip handle.
Excellent display
SafeCheck RG-1 can be used both day and night time thanks to its excellent illuminated display and is ideal for railway engineers.
Withstands moisture
Weatherproof encapsulation to prevent problems regardless of weather conditions.
Technical data
RG-1 Scope of use:
1435 mm standard gauge railway with operating speed ≤ 250 km/h
- Track gauge: 1410 - 1470 mm
- Check rail gauge: 1381 - 1401 mm
- Back-to-back: 1338 - 1358 mm
- Superelevation: -185 - +185 mm
- Display: OLED
- Power voltage: 3,4 - 5,2 VDC (Rechargeable battery)
- Temperature range: -30ºC - +55ºC
- Insulation performance: > 1MΩ
- Weight: 2,75 Kg
- Length: <1600 mm
Minimum measurable dimensions:
Superelevation: 0,1 mm
Track gauge: 0,01 mm
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | SafeTrack |
| Origin | SE |
