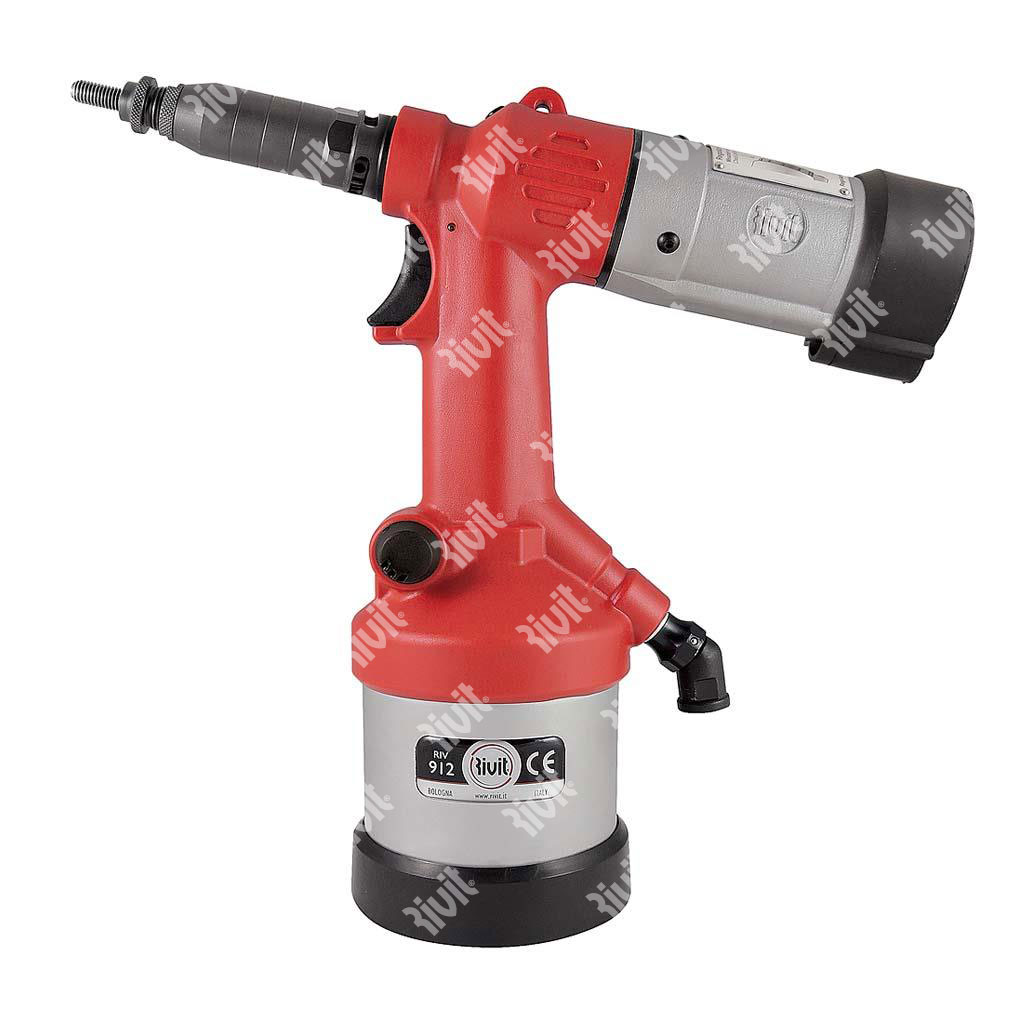

RIV912 - RIVIT Hydrop. tool for rivet nuts (With Head Kit)
The hydropneumatic tool RIV912 (1 phase) is used to place Rivsert female rivet nuts, from M3 to M12, and Rivbolt male rivet nuts, from M4 to M10.
RIV912 to place rivet nut using stroke adjustment.
Automatic screwing by positioning the tie rod in the rivet nut, 1 PHASE rivet nut deformation and unscrewing.
stroke (mm): 1/6.5
tensile stress at 6bar (N): 22500
weight (kg): 2.5
RIV912
The hydropneumatic tool RIV912 (1 phase) is used to place Rivsertfemale rivet nuts, from M3 to M12, and Rivbolt
male rivet nuts, from M4 to M10.RIV912 to place rivet nut using stroke adjustment.
Automatic screwing by positioning the tie rod in the rivet nut, 1 PHASE rivet nut deformation and unscrewing.
Casing structure has been made of aluminum with a plastic cover.In order to avoid the use of a special rod, a system has been designed to lodge an allen screw (hardness class 12.9), easy to find on the market and replace.
The tool is supplied in a plastic case without the frontal head kit. (Choose the correct one, according to the fastener to be placed, and order it separately)
Technical Specifications
| air working pressure (bar) | 6 |
| min/max air pressure (bar) | 5 - 7 |
| air consumption x cycle 6 bar (lt) | 7,5 |
| stroke (mm) | 1/6,5 |
| tensile stress at 6bar (N) | 22500 |
| weight without kit (kg) | 2,501 |
| vibrations (m/s²) | < 2,5 |
| noise level dB(A) | 78,5 |
| motor speed (rpm) | 2800 |
Specifications
| Info | |
|---|---|
| Brand | RIVIT |
| Origin | IT |
| Uncategorized | |
|---|---|
| Rivit Tool + Kit | RIV912 + RIVSERT M3 Nose or RIV912 + RIVSERT M4 Nose or RIV912 + RIVSERT M5 Nose or RIV912 + RIVSERT M6 Nose or RIV912 + RIVSERT M8 Nose or RIV912 + RIVSERT M10 Nose or RIV912 + RIVSERT M12 Nose |
